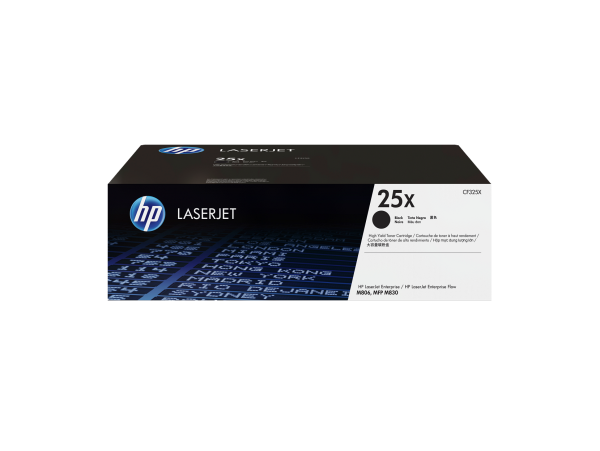

HP Toner Cartridge M806 M830 25X

The HP 25X is an ultra-high-yield monochrome (black and white) all-in-one toner cartridge built for HP’s heavy-duty, high-volume A3 department printing engines.

This cartridge utilizes an All-in-One system structure. Because these engines run at extreme commercial speeds, the high-capacity shell contains the toner hopper, an extra-large primary charge roller (PCR), heavy-duty wiper blades, and a massive internal organic photoconductor (OPC) drum cylinder all inside a single heavy chassis. Replacing the cartridge completely overhauls the core imaging system.

Complete Hardware Compatibility Matrix:

The HP 25X cartridge is designed specifically for the following enterprise-tier department laser printers:

• HP LaserJet Enterprise M806dn / M806x+ (Standard A3 desktop/freestanding single-function printers)

• HP LaserJet Enterprise MFP M830z / M830z NFC (Large floor-standing multi-function peripherals)

Technical Specifications & Yield Metrics:

ℹ️ Note on Alternative Options: Unlike smaller HP desktop printer families, there is no low-capacity “25A” variant manufactured for this physical hardware track. Due to the high-velocity design of the M806 and M830 systems (printing up to 56 pages per minute), the high-capacity CF325X is the baseline cartridge size required to operate the machine.

Key Technical & Logistics Data:

• Smart Chip Configuration: The cartridge features a heavy-duty tracking microchip installed on the side rail guide. This chip syncs directly with HP’s web jetadmin fleet firmware to update large corporate networks on toner status, page counting, and remaining lifecycle percentages. For non-original configurations, a functional replacement chip is essential to avoid machine-stop alerts.

• Magnetic Toner Powder: To ensure deep, solid black background fills and sharp text lines while moving paper at high speeds, the CF325X uses a heavy, dual-component magnetic toner powder formula.

• Separate Wear Parts: The machine’s fuser unit is handled completely independently from this cartridge. If you see recurring dark horizontal smears or creased paper that a fresh toner doesn’t fix, the issue points to the HP LaserJet 110V/220V Fuser Maintenance Kit (C1N54A / C1N58A), which is rated for 200,000 pages.
